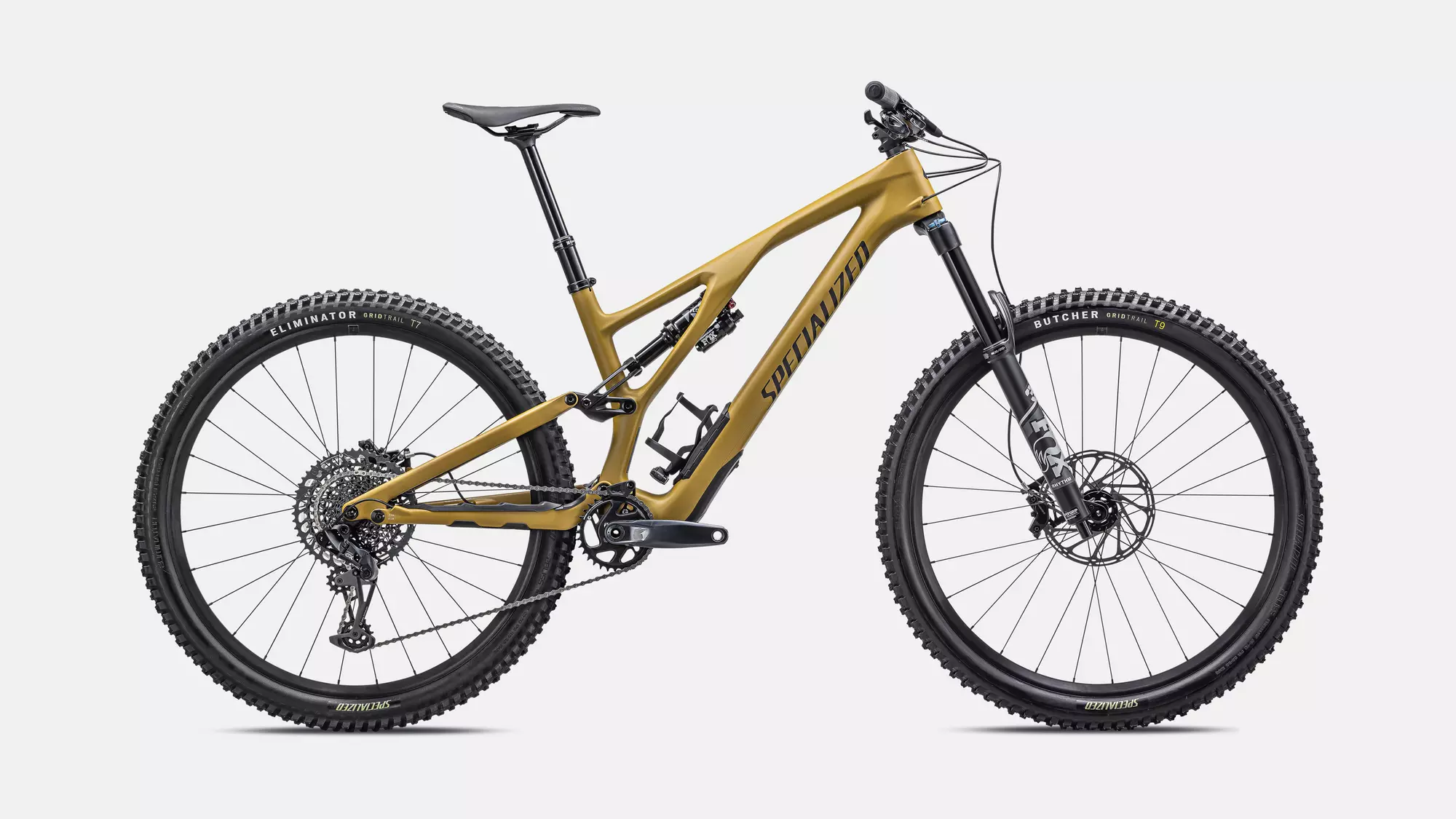

Stumpjumper EVO COMP

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

Seat Binder

Alloy, 38.6mm

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

Stem

Alloy Trail Stem, 35mm bar bore

Grips

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

Rear Derailleur

SRAM GX Eagle, 12-speed

Shift Levers

SRAM GX, trigger, 12-speed

Cassette

Sram XG-1275, 12-speed, 10-52t

Chain

SRAM NX Eagle, 12-speed

Crankset

SRAM X1 Eagle, DUB, 32T, S1: 165mm, S2-S5: 170mm, S6: 175mm

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Rear Hub

Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

Standard, Presta Valve

Weight

14.32kg (31 lb, 9.1 oz)

Weight Size

S4
