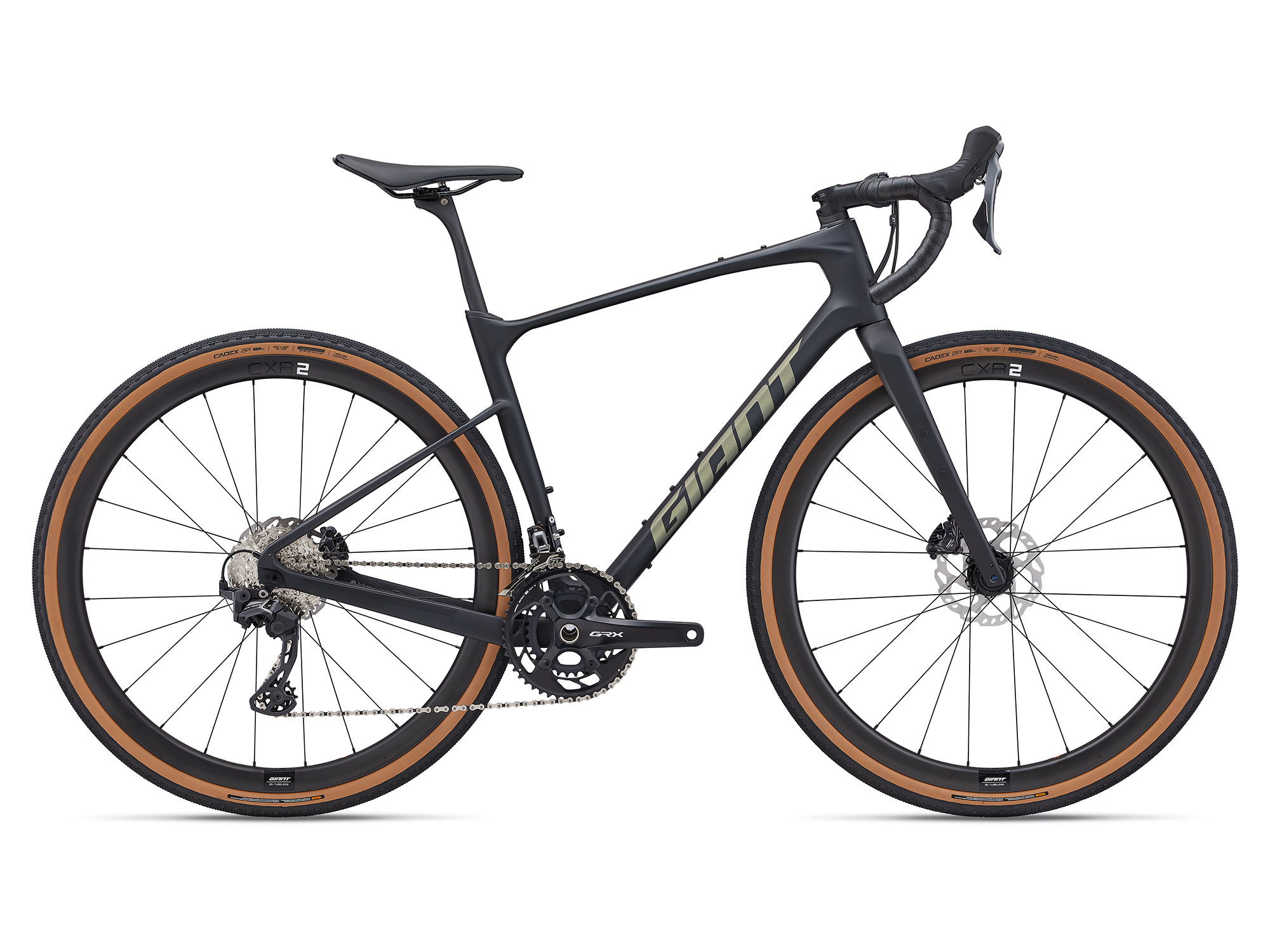

Revolt Advance 0

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SIZES

XS, S, M, M/L, L, XL

COLOURS

Carbon

FRAME

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

FORK

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

SHOCK

N/A

HANDLEBAR

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

GRIPS

Stratus Lite 3.0

STEM

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm Giant D-Fuse SL, composite, 14mm offset

SADDLE

Giant Approach
